Home » Products » Suspended Working Platform

Suspended Working Platform

New Age Suspended Working Platforms are perfect for building facade construction, cleaning, maintenance and decoration works. These are developed and manufactured for great versatility, reliability and durability. They are used in many different areas including elevator installing, ship building, and more. Our working platforms are designed to provide easier, safer and efficient platform access to workers. Also, we believe in the concepts of speed, higher safety and productivity.

The durable suspended working platforms are available in different Type, Dimension and Specification. Adjustable height, effective suspension mechanism and latest safety standard make our platforms a perfect solution. These are incorporated with quality, reliable Hoist, Safety Lock and Electric Control Panel. They are also great in terms of lifting speed, rated load, and other capabilities.

Usage and Functions of Our Suspended Working Platforms:

1) Decorating, construction of external walls of multistory buildings
2) Installation of curtain walls and outside components.
3) Repairing, maintenance, cleaning and checking for the external walls of high-rise buildings.
4) Construction, maintenance & repairing for large scale projects, such as dams, bridges, large tank, chimney and derrick.
5) Installation of billboard for the high-rise structures.
6) Welding, cleaning & painting of ships.

Metal Suspended Working Platform is an economic solution for any construction site. It allows to easily access walls and facades, no matter what the height of building. The Platform is constructed with a modular system that offers several advantages, such as ergonomic design, anti-corrosive finish and industry-best service. Make sure that the platform is installed & maintained as per the job requirements, industry standards and safety regulations.

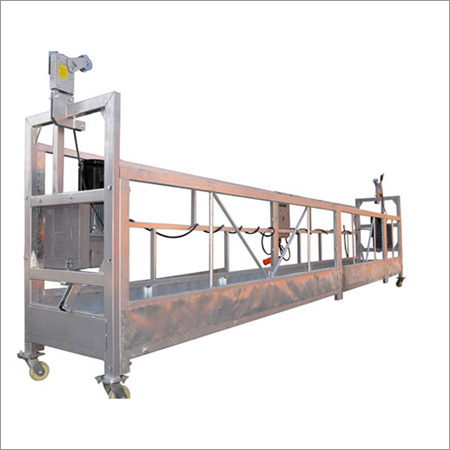

Steel Suspended Platform
close
Steel Suspended Platform
00
Technical Details:
  • Dimension of platform(L*W*H) : (2.5m x 2 +1m+1.5m) x0.76m x 1.45m
  • Wire Rope Type : 4X31SW+NF-10.2
  • Platform Type : Hot Dip Galvanized
  • Suspension Mechanism Weight : 400 kg
Rope Suspended Platform
close
Rope Suspended Platform
00
Technical Details:
  • Rated Load : 300 kg.
  • Lifting Speed : 8.2 m/min
  • Max Lifting Height : 100 Meter
  • Dimension of platform(L*W*H) : 1.2*0.69*1.18m
  • Platform Type : Galvanized
Suspended Working Platform
close
Suspended Working Platform
00
Technical Details:
  • Model Type : ZLP 800-1 (2.5)
  • Rated Load : 400 kg.
  • Lifting Speed : 8.2 m/min
  • Max Lifting Height : 100 Meter
  • Dimension of platform(L*W*H) : 2.5m x0.76m x 1.45m
  • Platform Type : Galvanized
Suspended Platform Hoist
close
Suspended Platform Hoist
00
Technical Details:
  • Model Type : ZLP 800
  • Rated Load : 800 kg.
  • Lifting Speed : 9 m/min
  • Max Lifting Height : 100 Meter
  • Dimension of platform(L*W*H) : (2.5m x 2 +1m+1.5m) x0.76m x 1.45m
  • Platform type : Galvanized coated
L Shaped Suspended Platform
close
L Shaped Suspended Platform
00
Technical Details:
  • Rated Load : 630 kg
  • Lifting Speed : 9.3±0.5
  • Max Lifting Height : 100 Meter
  • Dimension of platform(L*W*H) : (2000+2000+900+900)*690*1180
  • Platform Type : Hot Dip Galvanized

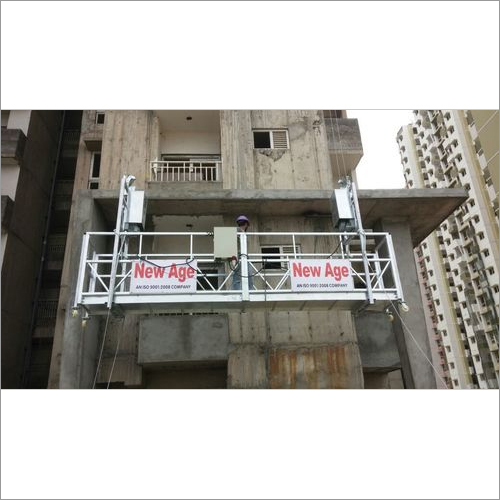

W Shaped Rope Suspended Platform
close
W Shaped Rope Suspended Platform
00
Technical Details:
  • Rated Load : 800 kg.
  • Lifting Speed : 9 m/min
  • Max Lifting Height : 100 Meter
  • Dimension of platform(L*W*H) : (2.5m x 2 +1m+1.5m) x0.76m x 1.45m
  • Platform Type : Hot Dip Galvanized
Round Shaped Suspended Platform
close
Round Shaped Suspended Platform
00
Technical Details:
  • Rated Load for RSP : 3000 kg (125 kg per 1*1 mtr)
  • Lifting Speed : 8.2 m/ min
  • Max Lifting Height : 285 meter
  • Platform Dimension : 6.3 mtr Round & 3X2 mtr Hollow
  • Floor Panel : Jali type
Square Shape Suspended Platform
close
Square Shape Suspended Platform
00
Technical Details:
  • Rated Load : 800 kg
  • Lifting Speed : 9 m/min
  • Max Lifting Height : 250 Meter
  • Dimension of Platform (L*W*H) : (2600 x2200)*0.76*1.45
  • Platform Type : Galvanized coated
Suspended Platform Curve Shape
close
Suspended Platform Curve Shape
00
Technical Details:
  • Lifting Speed : 9 m/min
  • Rated Load : 800 kg
  • Max Lifting Height : 100 Meter
  • Platform type : Galvanized coated
  • Dimension of Platform (L*W*H) : (2.5m x 2 +1m+1.5m) x0.69m x 1.45m
