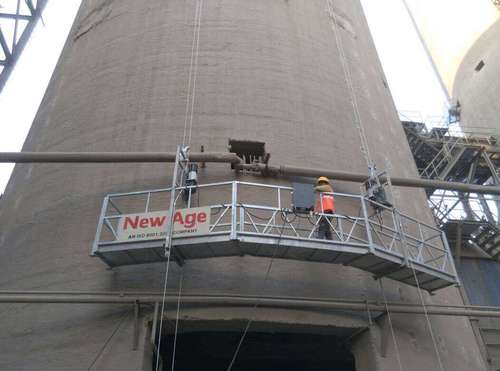

We are manufacturing and supplying a wide range of durable metal L Shaped Suspended Platform. By utilizing quality tested steel and pioneering techniques, offered platform is manufactured at our advanced production unit. This platform is mainly used to elevate heavy goods to a desired level at various construction sites. Clients can avail this platform from us in vivid specifications at marginal prices. Also, this durable L Shaped Suspended Platform is also demanded in various industries for inspection and maintenance of big-size tanks and chimneys.
Features:
Technical Specification:
Model Type | ZLP 630 | ||
Rated Load | 630 kg | ||
Lifting Speed | 9.3±0.5 | ||
Max Lifting Height | 100 Meter | ||
Dimension of platform(L*W*H) | (2000+2000+900+900)*690*1180 | ||
Suspension mechanism | Protrusion of front beam | 1300mm | |
Height of Front beam | 1150mm~1650mm | ||
Hoist | Model | LTD 6.3 | |
Lifting force |
| ||
Motor | Power | 1.5kw | |
Voltage | 415V,50Hz, 3 phase | ||
Rotation speed | 1400r/min | ||
Brake Torque | 15N-m | ||
Safety lock | Type | LSG 20 | |
Locking cable angel |
| ||
Allowable impulsive force | 20kN | ||
Weight | Suspension platform | 320kg | |
| Suspension mechanism | 278 kg | |
| Counterweight | 900kg(25*36pcs) | |
| Whole machine weight without steel wire rope & power cable |
| |
Wire rope | Type | 4*25+PP-¸8.6break strength51800N | |
Platform type |
| Hot Dip Galvanized |
![]() |
